dB Technologies OPERA 15 PA-Box 15/2, aktive Multifunktionsbox
aktiver Beschallungs-Lautsprecher, 15" Speaker+ 1"Horn, 600W RMS digitale Endstufe mit DSP, 1x Combo MIK/LINE IN + 1x Line-IN XLR-Out, Max SPL: 129 dB
€519.00*
Product number:
00034961
OPERA15
Ausserordentlich kraftvoll, neues akustisches Konzept und fortschrittliche DSP-Technologie vereint im neuen Design geschaffen für hervorragende Sound-Erlebnisse mit Live-Musik oder DJ-Anwendungen.
Properties "dB Technologies OPERA 15 PA-Box 15/2, aktive Multifunktionsbox "
600W RMS / 1200W Peak-Power
Fortschrittlicher DSP mit FIR Filterung
Neues, asymmetrisches Horn
2 Eingangsknäle (mic-line/mic-instr)
Wählbarer Ausgangskanal (link ch1/mix ch 1+2)
8 EQ Presets für alle Anwendungen
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]50 - 20.000 Hz
Frequency Response [- 3dB]46 - 19.600 Hz
Max SPL130 dB
HF1" Exit, 1.4 v.c.
Type HF Compression driver
Horizontal Directivity 100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
Asymmetrical Horn
LF15", 2" v.c.
Amplifier
SMPS Power supply dual range
Amp ClassClass D
RMS Power 600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
System PresetsRotary Encoder (8 Presets)
X-Over Frequency 1800 Hz
Limiter: Peak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters
Input

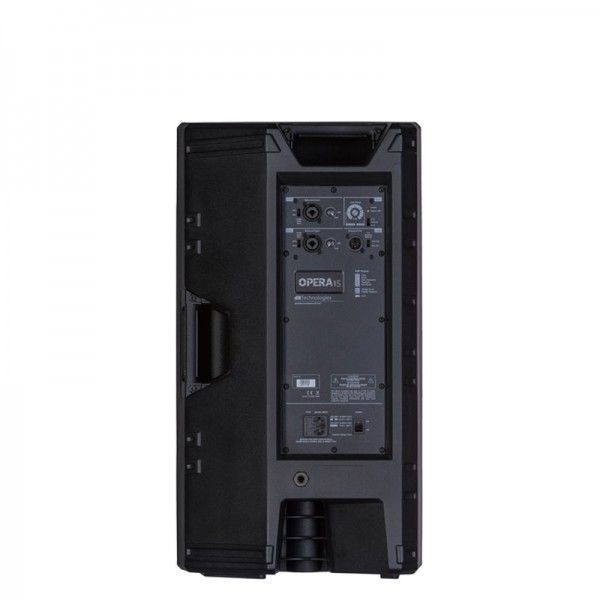

Signal Input 1xCombo (XLR/Jack 6.3 mm) MIC/Line 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT) Selectable
Mechanics
HousingPolypropylene with internal frame
Full grille

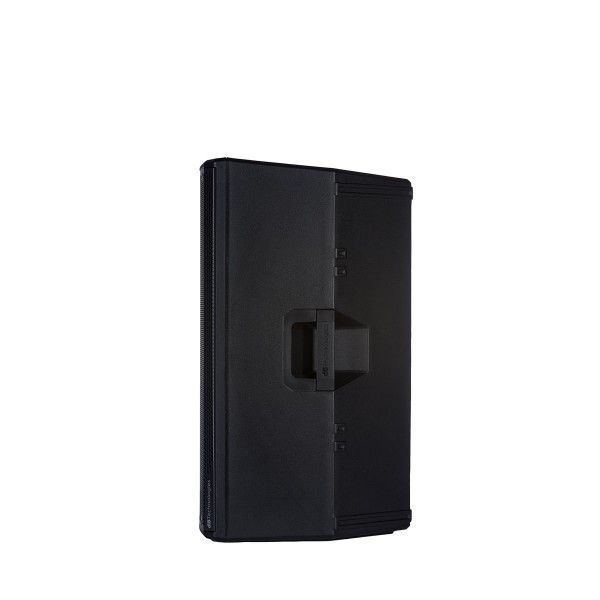

Handles 1 on left Side, 1 on Top
Rigging Points 2XM10 on Top + 1x M10 on Back
Pole Mount D36 mm

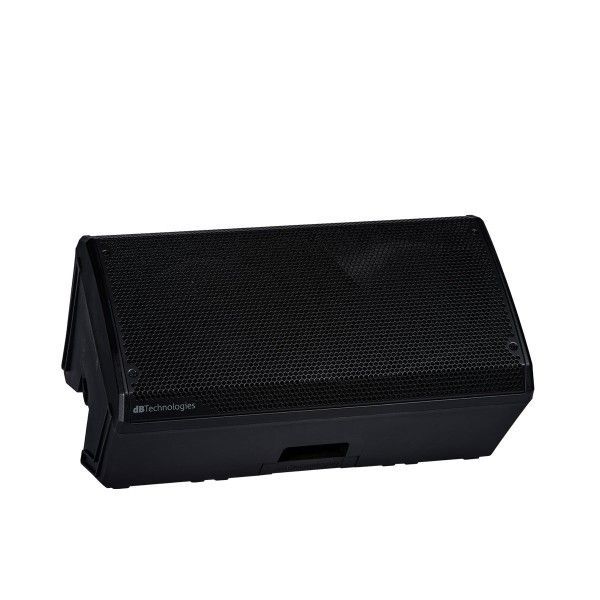

Angles up Monitor use 45°
WHD: 420 mm / 722 mm / 419 mm
Weight 18.3kg
Fortschrittlicher DSP mit FIR Filterung
Neues, asymmetrisches Horn
2 Eingangsknäle (mic-line/mic-instr)
Wählbarer Ausgangskanal (link ch1/mix ch 1+2)
8 EQ Presets für alle Anwendungen
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]50 - 20.000 Hz
Frequency Response [- 3dB]46 - 19.600 Hz
Max SPL130 dB
HF1" Exit, 1.4 v.c.
Type HF Compression driver
Horizontal Directivity 100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
Asymmetrical Horn
LF15", 2" v.c.
Amplifier
SMPS Power supply dual range
Amp ClassClass D
RMS Power 600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
System PresetsRotary Encoder (8 Presets)
X-Over Frequency 1800 Hz
Limiter: Peak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters
Input
Signal Input 1xCombo (XLR/Jack 6.3 mm) MIC/Line 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT) Selectable
Mechanics
HousingPolypropylene with internal frame
Full grille
Handles 1 on left Side, 1 on Top
Rigging Points 2XM10 on Top + 1x M10 on Back
Pole Mount D36 mm
Angles up Monitor use 45°
WHD: 420 mm / 722 mm / 419 mm
Weight 18.3kg
