Palmer PAN 04 passive Stereo DI-Box

2-Kanal DI-Box, passiv, 0 db/-30 db PAD, Ground Lift, Input/Link Out Klinke, Balanced Out XLR, Stahlblech Gehäuse

€85.00*

in Stock, delivery time 1-3 days

Product number: 00002407

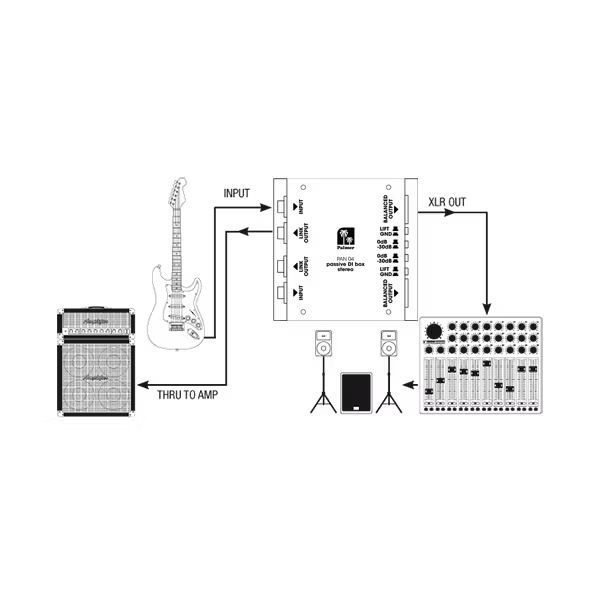

The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

Properties "Palmer PAN 04 passive Stereo DI-Box"

No. of channels: 2
Passive/Actibe: Passive
Transformer balanced: Yes
Attenuator: -30 dB
Input/Output Gain: -20 dB
Ground lift switch: Yes
Max Input Level: +54 dBu
Max Output Level: +4 dBu
Frequency Range 2K Source Imp. -1dB: 10 Hz - 40 kHz
Input Impedance 60Hz: 60 kΩ
Nom. Output Impedance: 600 Ω
Housing: Steel
Dimension: 110 x 110 x 45 mm
