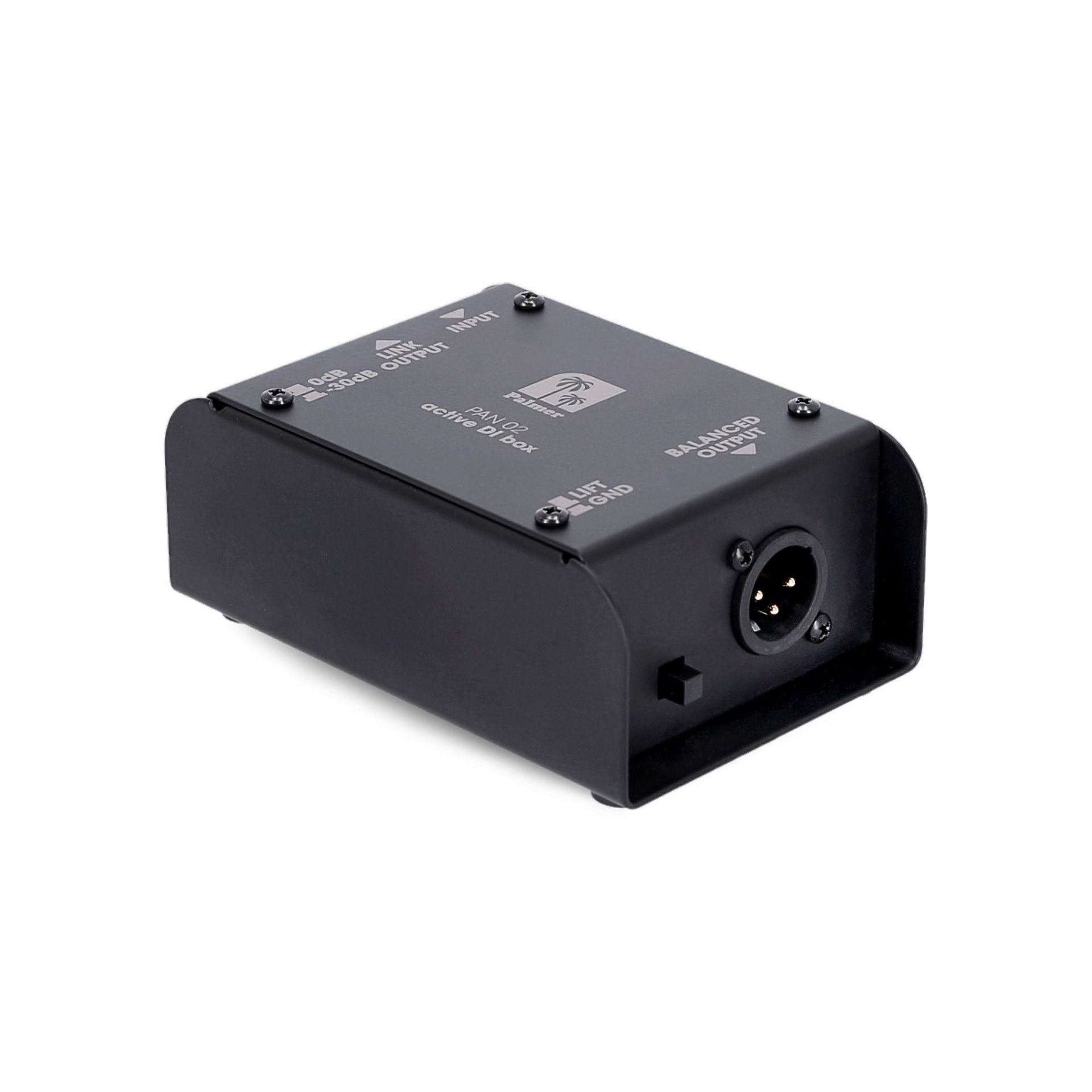

Palmer PAN 02 aktive DI-Box

Palmer
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box
Palmer PAN 02 aktive DI-Box

1-Kanal DI-Box, aktiv, 0 db/-30 db PAD, Ground Lift, Klinke Input/Link Out, XLR Out, Betrieb mit 9V Batterie oder Phantomspeisung, Stahlblech Gehäuse

€66.00*

Prices incl. VAT plus shipping costs

in Stock, delivery time 1-3 days
Product number: 00002600

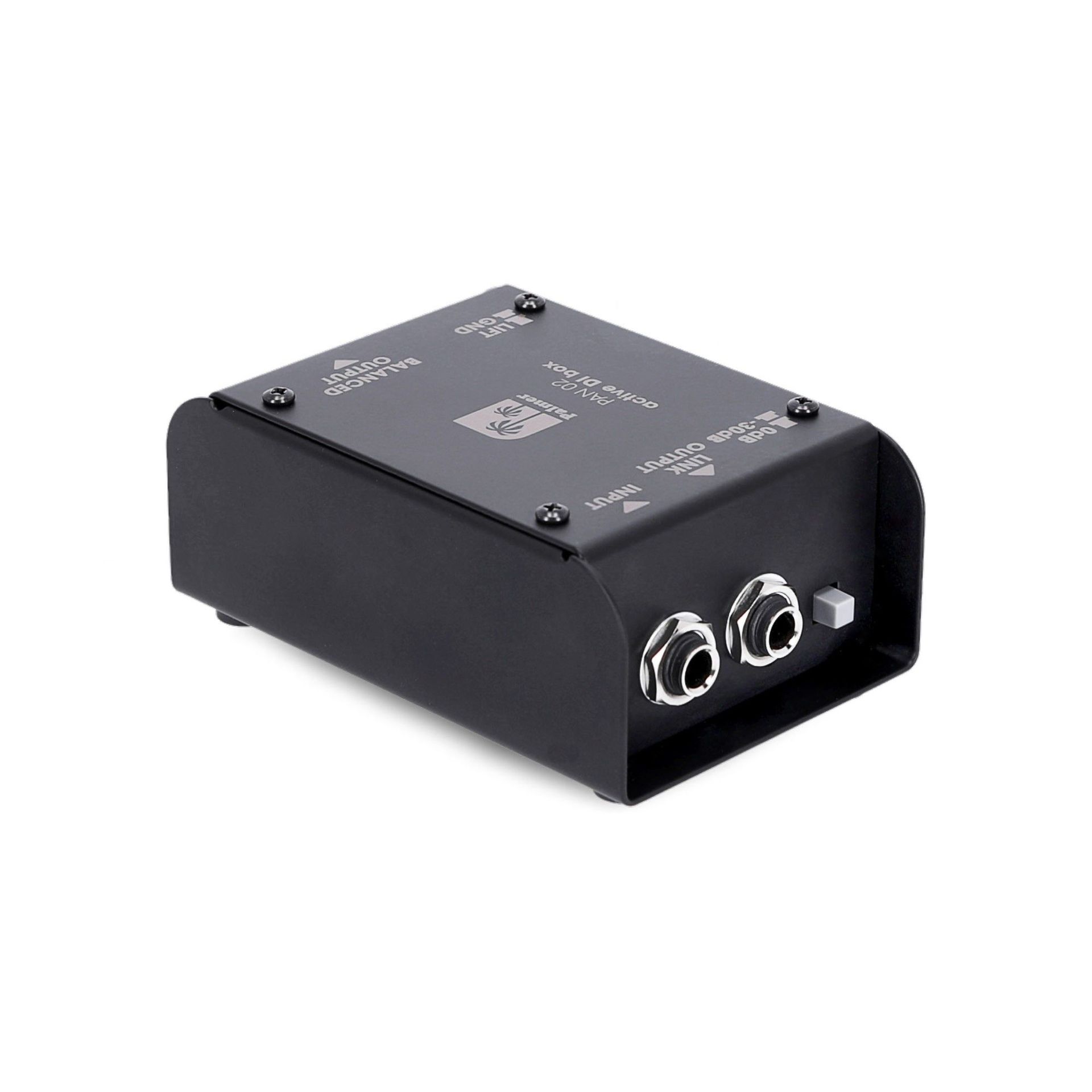

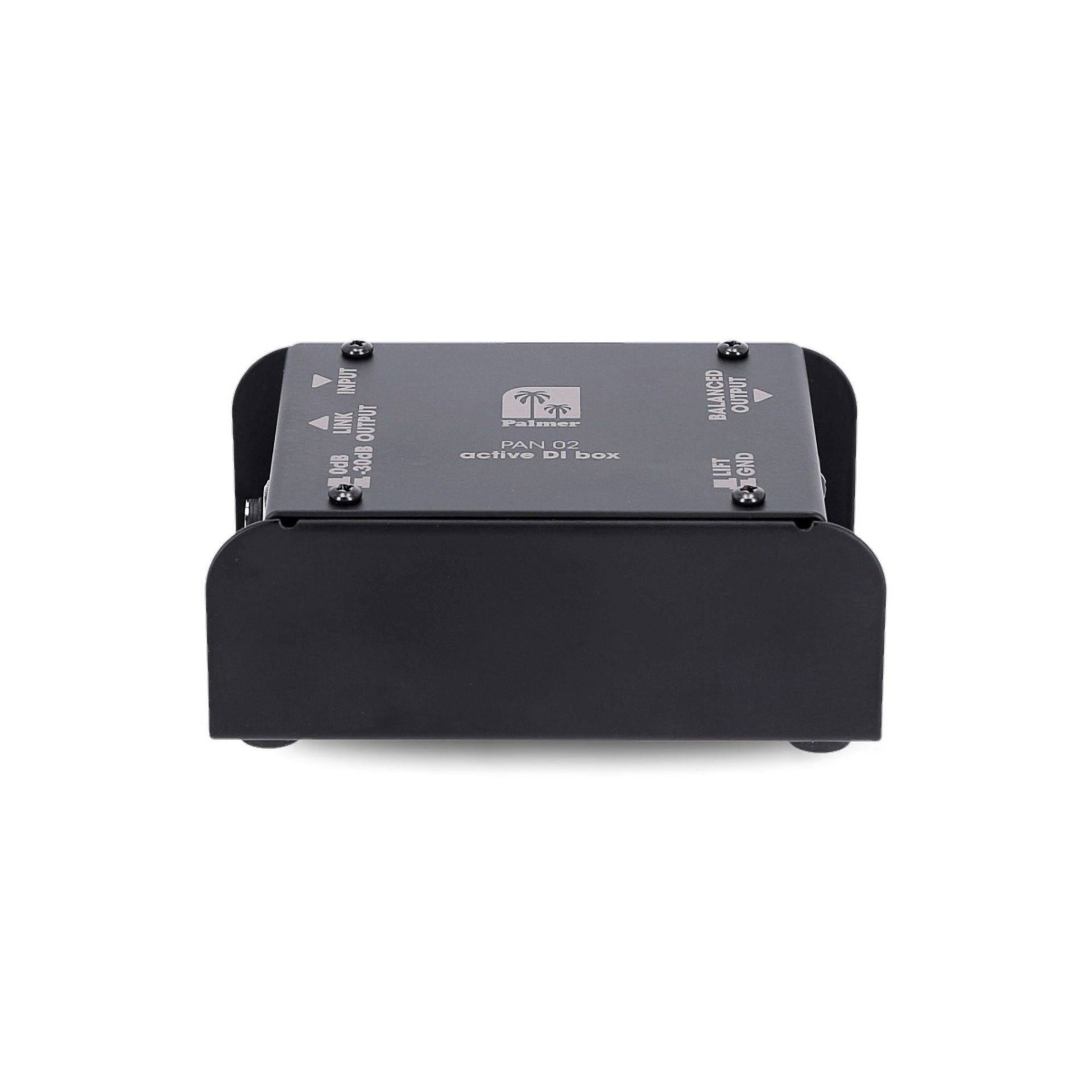

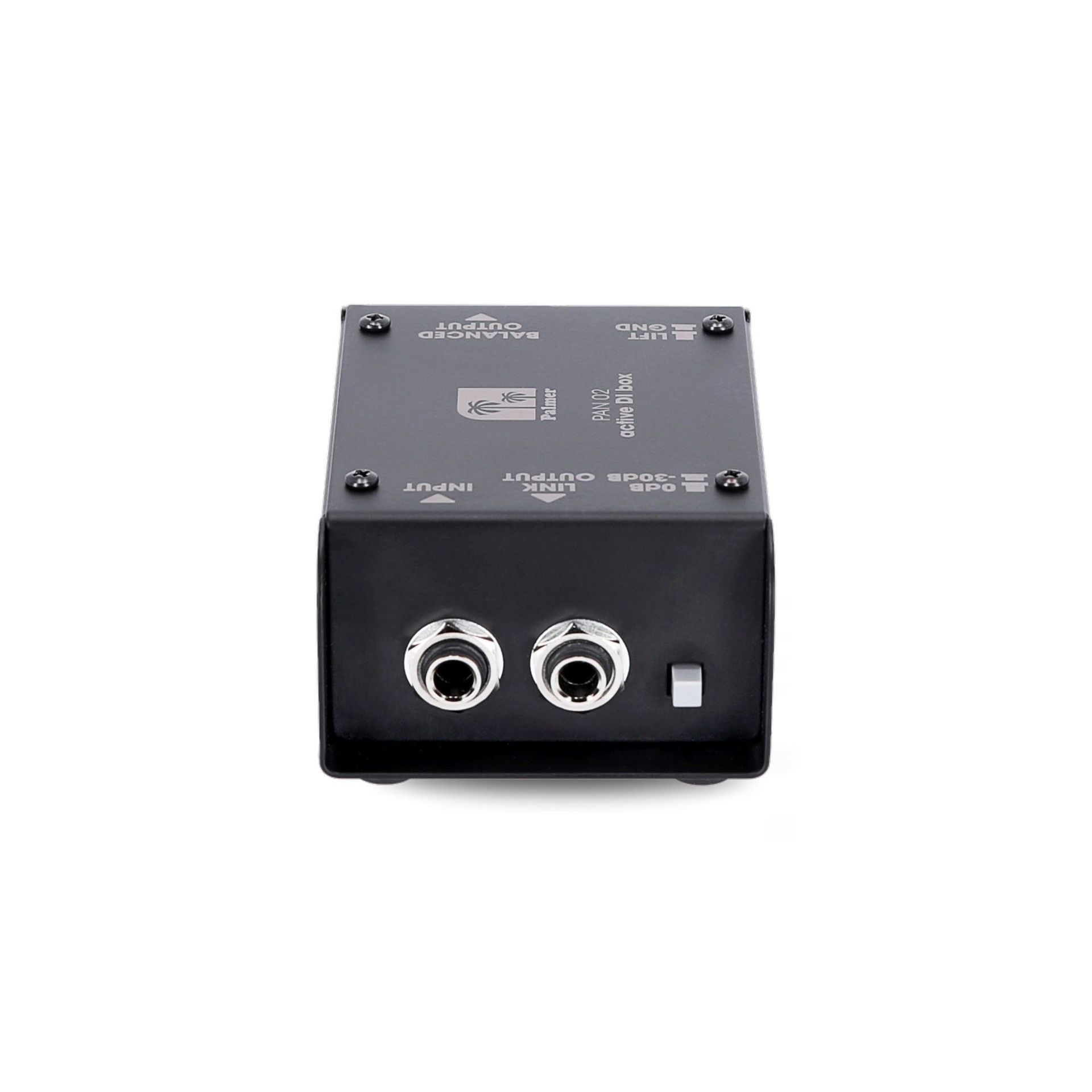

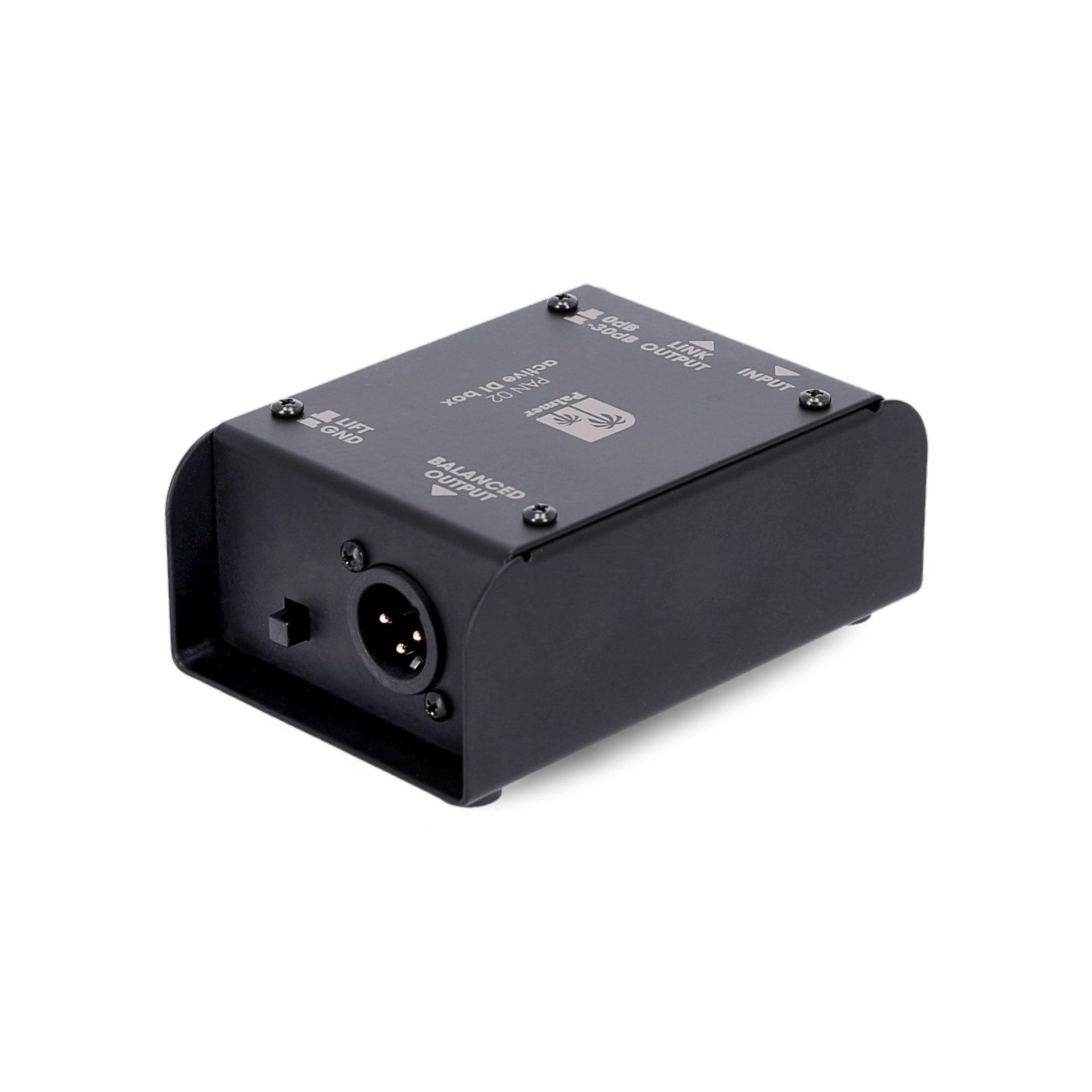

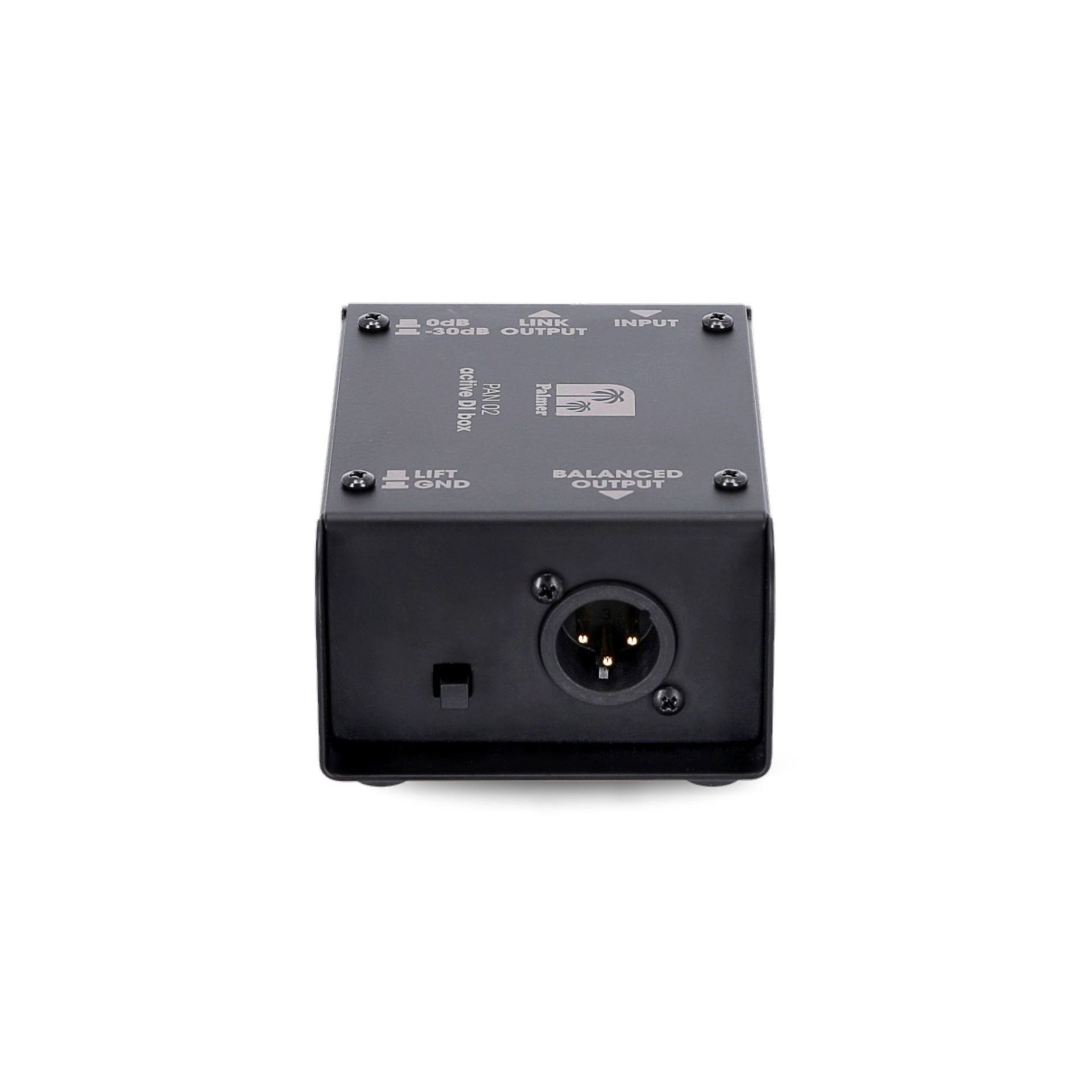

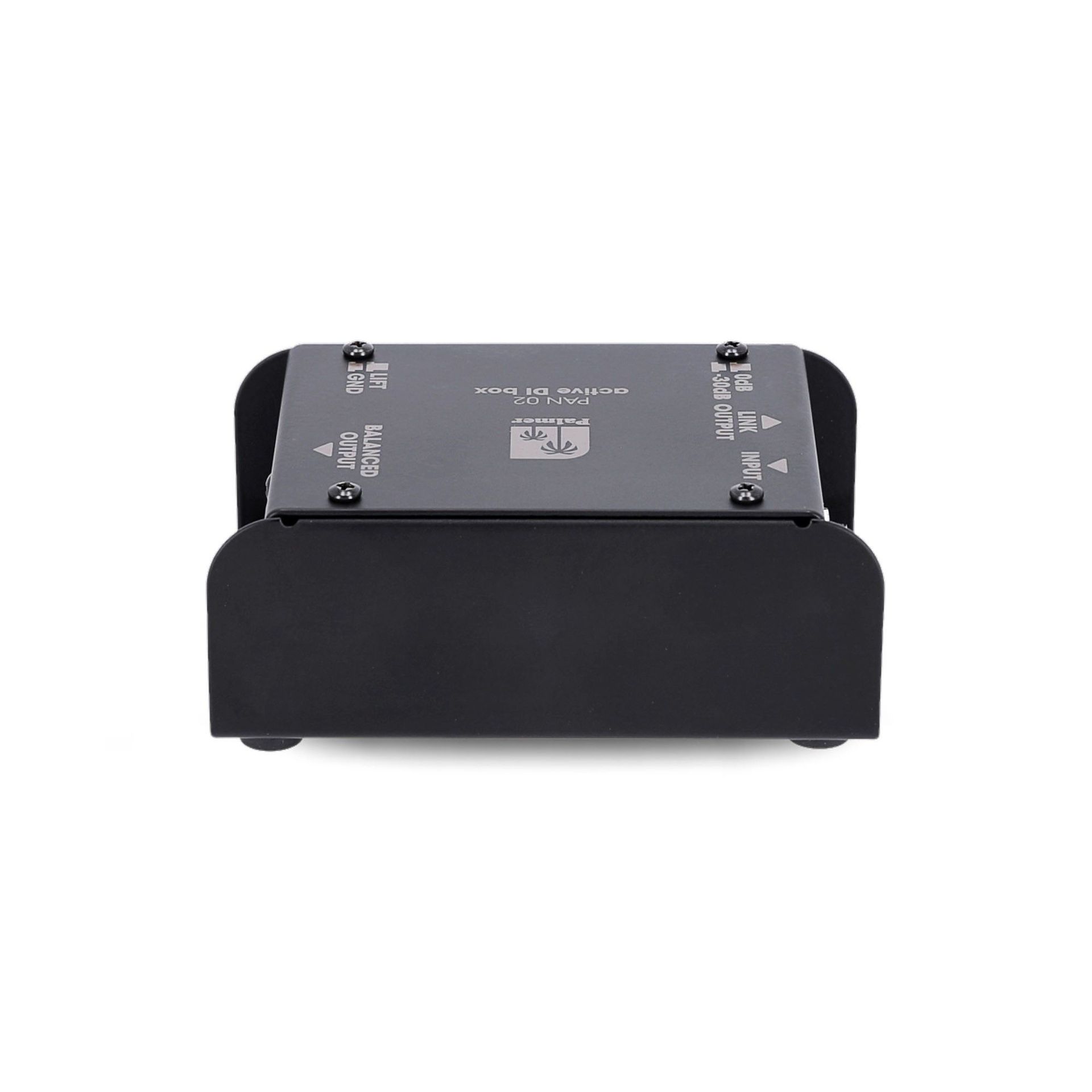

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.
Properties "Palmer PAN 02 aktive DI-Box"
No. of channels: 1
Passive/Actibe: Active
Transformer balanced: Yes
Attenuator: -30 dB
Power Supply: 9V / 48V
Input/Output Gain: -4 dB
Ground lift switch: Yes
Max Input Level: +45 dBu
Max Output Level: +10 dBu
Frequency Range 2K Source Imp. -1dB: 10 Hz - 20 kHz
Input Impedance 60Hz: 1 MΩ
Nom. Output Impedance: 600 Ω
Housing: Steel
Dimension: 110 x 73 x 42 mm

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Mikrofonkabel REAN XLR male/female, 6 Meter, schwarz
Mikrofonkabel REAN XLR male/female, 6 Meter, schwarz
Mikrokabel, symmetrisch, XLR-Stecker männlich auf XLR-Stecker weiblich, REAN Stecker (by Neutrik), 6m lang

€14.50*
in Stock, delivery time 1-3 days
Palmer PAN 01 passive DI-Box
Palmer PAN 01 passive DI-Box
1-Kanal DI-Box, passiv, 0 db/-30 db PAD, Ground Lift, Input/Link Out Klinke, Balanced Out XLR, Stahlblech Gehäuse

€48.00*
in Stock, delivery time 1-3 days
%
Kabelbinder mit Klettband 50 cm lang mit Metallöse
Kabelbinder mit Klettband 50 cm lang mit Metallöse
Befestigungsmöglichkeit am Kabel, 50cm lang

€1.20* €1.90* (36.84% saved)
in Stock, delivery time 1-3 days

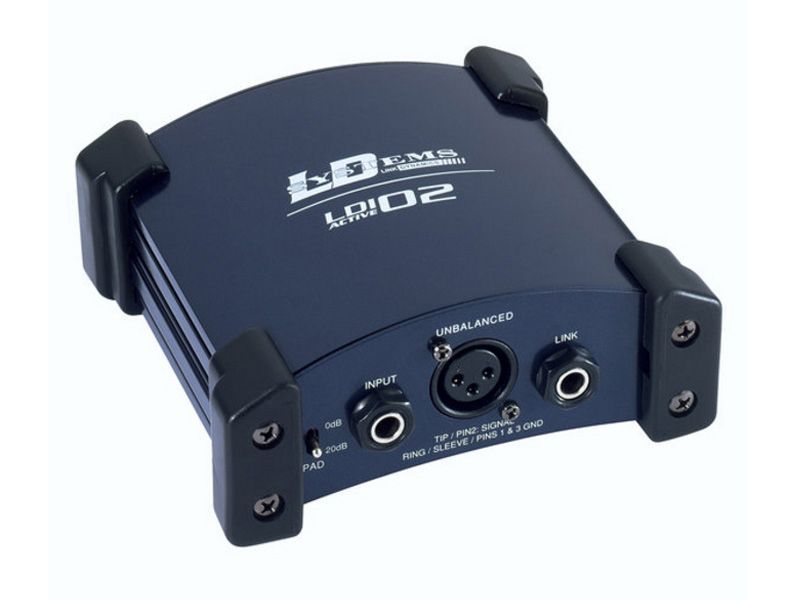

LD Systems LDI 02 aktive DI-Box
